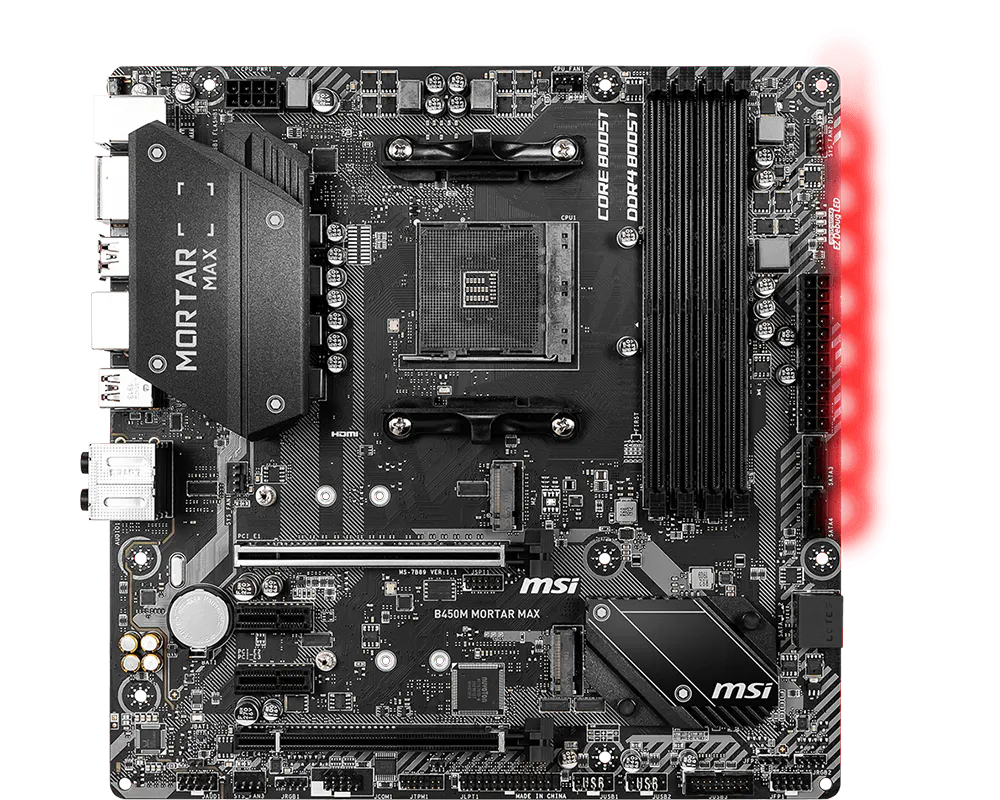

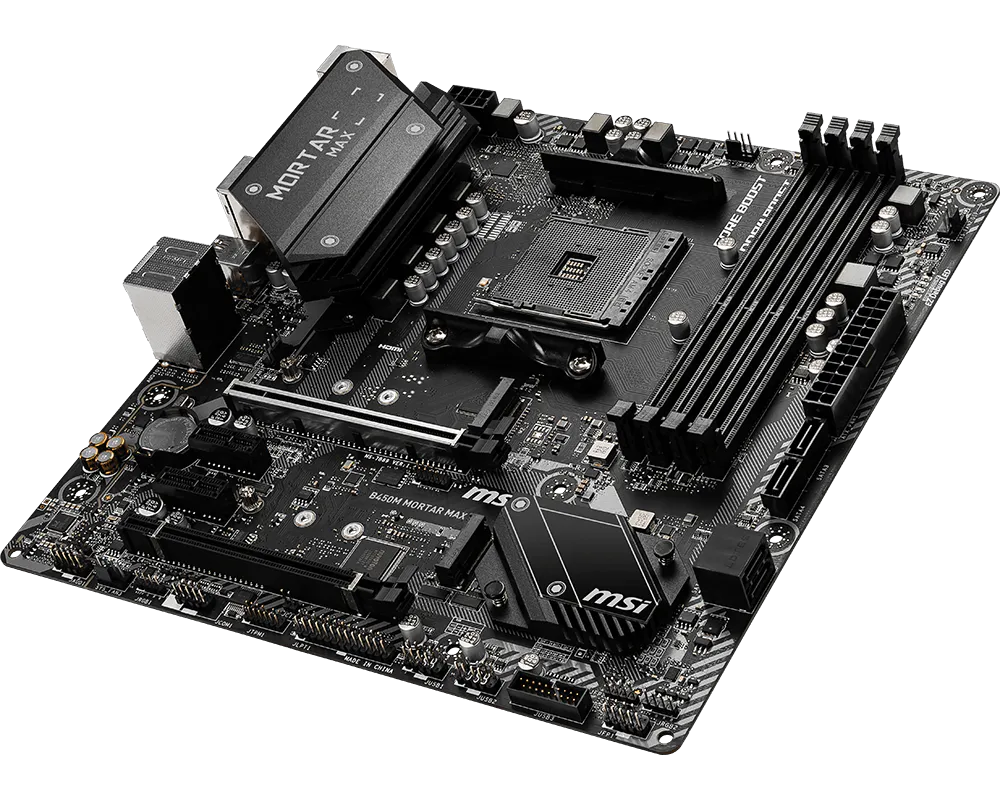

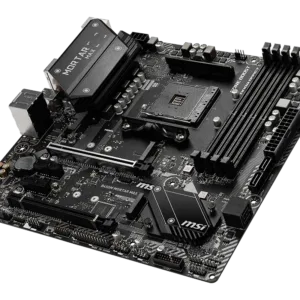

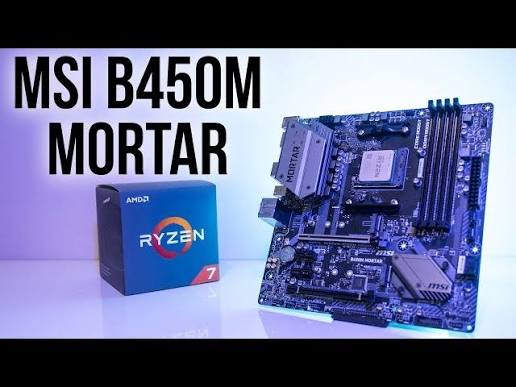

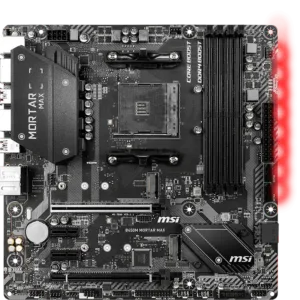

MSI B450M Mortar
₨ 15,500
-
Core Technical Specifications
- Socket: AMD AM4 (Supports 1st, 2nd, and 3rd Gen Ryzen out of the box, up to Ryzen 5000 series with a BIOS update).
- Chipset: AMD B450.
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm).
- Memory Support: 4x DDR4 DIMM slots, Dual Channel, supporting up to 64GB (or up to 128GB on newer BIOS revisions). Speeds up to 3466 MHz (OC).
- Storage Options:
- 2x M.2 slots (Slot 1 supports PCIe 3.0 x4 NVMe speeds up to 32Gb/s; Slot 2 supports PCIe 2.0 x4).
- 4x SATA III (6Gb/s) ports
The MSI B450M Mortar is widely regarded as one of the absolute best Micro-ATX motherboards for the AMD AM4 platform. It gained legendary status in the hardware community due to its excellent 4+2 phase VRM cooling design, allowing it to handle high-end Ryzen processors that cheaper B450 boards struggled to run stably.
ComponentSpecification DetailsForm FactorMicro-ATX (244 mm x 244 mm)Socket / ChipsetAMD Socket AM4 / AMD B450Memory Support4x DDR4 DIMM Slots, Dual Channel (Up to 64GB/128GB depending on revision, up to 3466+ MHz OC)Storage Interfaces4x SATA III (6Gbps) + 2x M.2 Slots
• Slot 1: PCIe 3.0 x4 (Full NVMe speed)
• Slot 2: PCIe 2.0 x4Expansion Slots1x PCIe 3.0 x16 (Steel Armor reinforced), 1x PCIe 2.0 x16 (runs at x4), 2x PCIe 2.0 x1
Rear I/O Connectivity1x USB 3.1 Gen2 Type-C, 1x USB 3.1 Gen2 Type-A, 4x USB 3.1 Gen1, 2x USB 2.0
DisplayPort, HDMI (requires integrated graphics)
Gigabit LAN, 7.1 HD Audio + Optical S/PDIF
