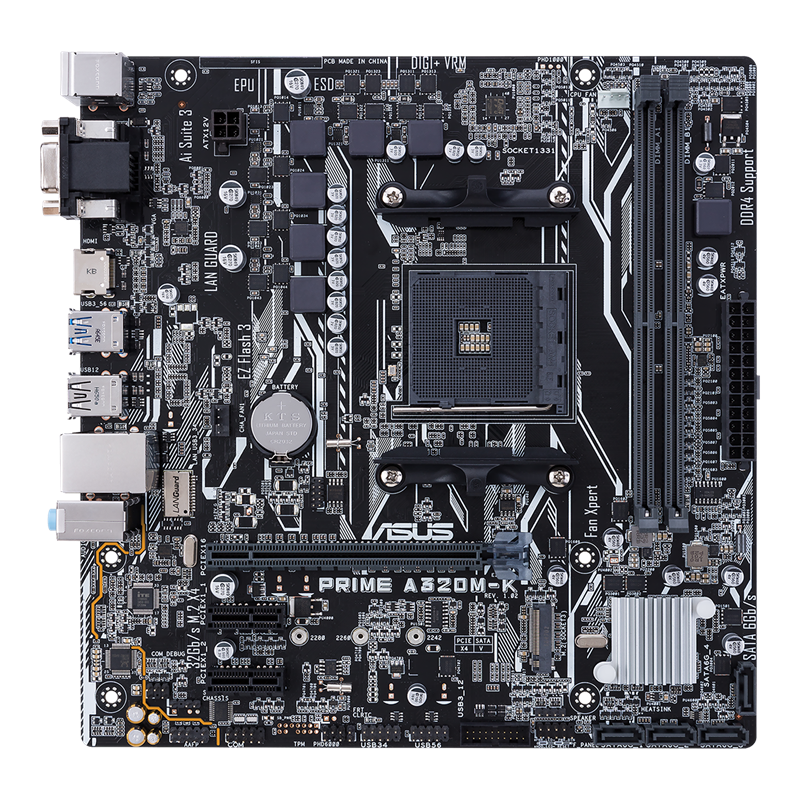

ASUS Prime A320M-K
₨ 13,000
Core Features & Limitations
- 5X Protection III: Features hardware-level safeguards including SafeSlot Core (a reinforced PCIe slot preventing heavy GPU sag), LANGuard (advanced surge protection), and Overvoltage Protection to maximize system longevity.
- No CPU Overclocking: The underlying A320 chipset does not support manual processor overclocking. If you intend to safely tweak or push your CPU multiplier, you will need a B450 or B550 series motherboard instead.
- Layout Constraints: Because of its compact Micro-ATX form factor, a dual-slot or triple-slot graphics card will likely block the top PCIe x1 slot and can make accessing the M.2 slot or certain SATA ports difficult once installed.
The ASUS Prime A320M-K is an entry-level, budget-friendly Micro-ATX motherboard designed for the AMD AM4 platform. It is built on the AMD A320 chipset and serves as a reliable foundation for budget gaming rigs, office PCs, or home entertainment setups.
Key Specifications
- Socket & Chipset: AMD AM4 socket; AMD A320 chipset.
- Processor Support: Originally built for 1st, 2nd, and 3rd Gen AMD Ryzen, Athlon, and A-Series APUs. With later BIOS updates, it can also support select newer AM4 processors like the Ryzen 5000 series.
- Memory Capacity: 2 x DDR4 DIMM slots, supporting up to 32GB of dual-channel system memory at speeds up to 3200MHz (O.C.).
- Storage Options:
- 1 x M.2 Slot (supports both PCIe NVMe and SATA modes up to 32Gb/s).
- 4 x SATA 6Gb/s ports (supports RAID 0, 1, 10).
- Expansion Slots: 1 x PCIe 3.0/2.0 x16 slot (for your dedicated graphics card) and 2 x PCIe 2.0 x1 slots.
- Rear I/O Connectivity: Includes 1 x HDMI, 1 x VGA (D-Sub), 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0 ports, 1 x Gigabit LAN port, and 3 x Audio Jacks
